Exhibitor Booth Designs: A Practical Guide to High-Impact, Repeatable Displays
16 min read

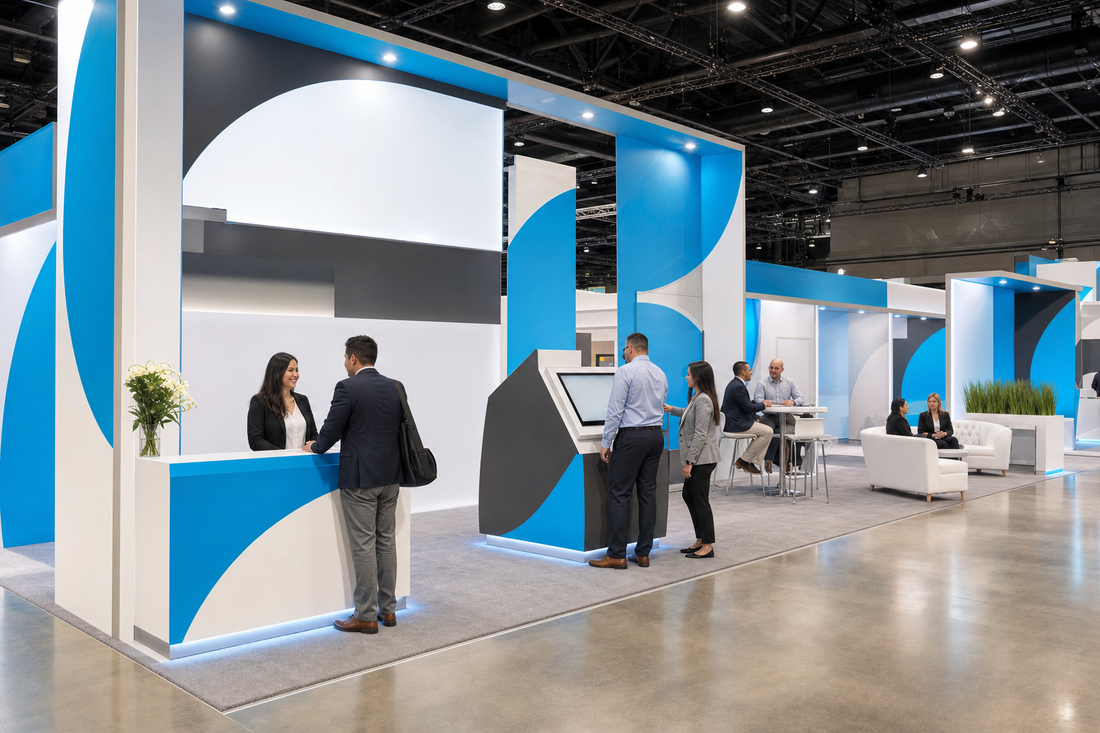

exhibitor booth designs
Effective exhibitor booth designs begin with show-floor conditions, not a polished rendering. The display must fit its footprint, arrive complete, support fast installation, and explain its purpose within the few seconds an attendee gives the facade. Decisions about traffic flow, hardware, graphics, freight, labor, storage, and reuse should begin with the first planning conversation.
Key Takeaways
- Booth design should start with practical show-floor conditions like footprint and assembly speed, not just a polished rendering.
- A display must communicate its purpose within the few seconds an attendee gives the facade to capture attention.
- Planning for freight, labor, storage, and reuse from the first conversation prevents costly surprises on site.
- Decisions about traffic flow and hardware need to be made early to support fast installation and consistent execution.
This guide treats booth design as an operating system for an event program: a display that looks commanding in a convention hall and performs reliably across changing venues, deadlines, and show requirements.
Beyond the Render: Why Exhibitor Booth Design Must Start With Execution
The Promise vs. The Reality: What "Great Design" Really Means in Trade Shows
A compelling render shows intent, not whether the structure fits through a freight door, the SEG fabric tensions correctly, or each connection point is labeled. Great design covers approved artwork, fabrication tolerances, packing order, advance warehouse deadlines, marshaling yard procedures, electrical drops, union jurisdiction, and dismantling instructions.
Attendees typically scan a booth facade for only 3 to 5 seconds before deciding whether to stop, according to VistaPrint’s trade show booth design guidance. The message must be readable at aisle distance, while the physical plan supports conversations, demonstrations, and product handling.
Introducing the Execution-First Framework: Designing for Reliability and Repeatability
Test every decision with four questions: Can the crew install it correctly? Can the shipment move without avoidable damage? Can staff and visitors move comfortably? Can the system adapt to the next event? This shifts attention to dependencies, tolerances, access points, labeling, and repeatable setup procedures.
It also improves budget discussions. A lower fabrication price may create more labor, heavier freight, difficult storage, or replacement graphics. A modular exhibit system, clear packing plan, and documented installation sequence reduce uncertainty before opening.
The Iconic Displays Advantage: Your Partner in Program Certainty
Iconic Displays manages design, production, logistics, and installation as connected parts of one program. This helps prevent situations in which a designer, printer, freight provider, and install crew each own one segment but no party owns the final result. A missing bracket or incorrect graphic can then be corrected before the show rather than becoming a show-floor problem.
The 10x20ft Turnkey Trade Show Booth Rental - Primal Backlit illustrates this model for a 10x20 footprint. The rental price starts at $7,626.00 USD and includes shipping, installation, dismantling, and removal from a Las Vegas, NV show venue. Additional “Zone” fees apply outside Las Vegas. Graphics, accessories, chairs, tables, computers, monitors, carpet, drayage/material handling, electrical hook-up, and daily cleaning are quoted separately.
Navigating the Environment: Why This Guide Differs from Product Catalogs
A product catalog organizes options by size, finish, or hardware. An operational guide asks how they support the schedule and show requirements: how the booth packs, who receives freight, how the crew verifies parts, which elements can be reused, and how the layout changes between an inline space and an island exhibit.
This applies whether you are reviewing trade show booth design companies, building a trade show booth design template, or seeking trade show booth ideas for small budgets. The strongest decision protects communication, installation accuracy, and repeat use together.
Mastering Space: Booth Design Strategies for 10x10, 10x20, and Island Footprints
The 10x10 Inline Challenge: Maximizing Impact in Limited Space
A 10x10 inline booth has one primary open side and limited room for storage, staff circulation, and product presentation. Put the main identity and value statement on the back wall, keep copy short, and place a counter or product surface to one side rather than across the entry. For trade show booth design 10x10 planning, prioritize one conversation zone, one demonstration point, and concealed storage. A compact monitor, wall-mounted shelving, or vertical display adds function without consuming visitor space.
Scaling Up: Designing for 10x20 Linear Booths and Beyond
A 10x20 linear booth offers more frontage, but unused or disconnected space can weaken the plan. Divide it into brand communication, product experience, reception, and consultation. Keep the strongest message central, then use depth and furniture to guide visitors inward.
The 10x20ft Turnkey Trade Show Booth Rental - Primal Backlit includes a 12’ wide large format lightbox, an 8’ wide large format lightbox stepped slightly forward, and 1 EV2 DW counter with ample storage. Its two-level frontage creates a focal point while preserving an approach path. The exhibit can be fully customized to the customer's needs, with final scope confirmed during planning.
Commanding Attention: Strategic Layouts for 20x20 Island Exhibits
A 20x20 island exhibit is open on multiple sides. Use a central architectural element, overhead identification, or tall graphic surface for visibility without blocking entry. Keep corners purposeful, placing demonstrations and meeting points where they do not interrupt circulation. Review rigging rules, ceiling height, fire regulations, electrical locations, and neighboring sightlines early; a message that works from one aisle may fail from another.
Functional Zoning: Creating Flow for Demonstrations, Consultations, and Engagement
Assign each area a job before selecting furniture. Demonstrations need queue space, power, and a viewing angle that does not block the aisle. Consultations need acoustic separation, seating, and an exit path. Product engagement needs reachable surfaces, staff visibility, and room for visitors to pause.
- Mark the primary approach: identify the aisle from which most attendees will first see the exhibit.
- Set the message wall: place the brand name and core value statement within the first sightline.
- Reserve circulation: maintain an unobstructed route from the aisle to the key experience.
- Place active zones: position demonstrations and consultations where staff can engage without blocking traffic.
- Test the staff view: confirm that team members can see visitors, storage, screens, and entry points.
Operational Considerations: Crate Sizes, Shipping Weights, and Setup Time Across Footprints
Footprint affects crate dimensions, piece count, freight classification, receiving access, material handling, and installation labor. Heavy custom components may need specialized handling, while modular parts can pack into manageable cases for repeat deployment. Modular exhibit systems may reduce ongoing multi-show shipping and drayage expenses by up to 40% compared with heavy static custom wood builds, according to Classic Exhibits.
Request a packing diagram, component inventory, shipment dimensions, setup sequence, and responsibility matrix. Confirm target dates, advance warehouse requirements, electrical drops, and installation access with show management.
Solving the 'Washed Out & Cluttered' Dilemma: Visual Strategy for Impact
The Common Pitfall: Why Booths Disappear in Convention Halls
Many exhibitor booth designs look clear in a studio rendering yet lose definition under convention hall lighting. White walls, pale graphics, reflective flooring, and neighboring displays can flatten the facade. Low contrast, weak sightlines, and too much information make the brand difficult to identify.
Attendees typically scan a booth facade for only 3 to 5 seconds, according to VistaPrint’s trade show booth design guidance. They need to recognize the company, understand the offer, and see a reason to stop. Product names, small text, partner logos, and disconnected messages make that decision harder.
Contrast and Lighting: Tactical Solutions to Stand Out
Test the primary message at aisle distance, under expected lighting, and from several approach angles. Dark text on a light field, strong brand color, a darker frame, or a defined graphic block can separate the display from neighboring white exhibits.
Lighting should direct attention rather than illuminate every surface equally. Check glare on monitors, shadows across graphics, and color shifts among fabric, rigid panels, and illuminated elements. Confirm electrical locations and show rules before fabrication.
Backlit SEG Lightboxes: A Practical Approach to Visibility and Brand Glow
Backlit SEG lightboxes create an even graphic field visible across a busy aisle. The silicone edge graphic must match specified dimensions, bleed, and tension allowance. Incorrect cutting or channel placement can cause wrinkles, bowing, or gaps. Review the frame profile, fabric orientation, LED placement, access points, and replacement plan.
The backlit display collection offers formats for building a brighter, more visible booth facade.
Signage Hierarchy: Communicating Your Core Value in Seconds, Not Minutes
Build the message in layers: the highest identifies the company or category, the central statement explains the primary value, and a short supporting line or visual proof gives visitors a reason to continue. Product details and technical specifications belong deeper in the experience, where staff can provide context.
Pros
- Large-format graphics remain readable from the aisle.
- Focused lighting establishes a clear visual destination.
- Short message hierarchy supports rapid attendee decisions.
Cons
- Backlit graphics require accurate files and careful installation.
- Too much contrast can feel disconnected from the brand system.
- Illumination adds power planning and component checks.
Avoiding Visual Noise: Designing for Clarity, Not Clutter
Each object should support identification, engagement, storage, or conversation. Remove duplicate logos, competing headlines, unnecessary shelving, and unused furniture. If the booth feels bare, use purposeful product staging, a demonstration surface, or a staffed meeting area. Clear sightlines, controlled color, and disciplined copy give exhibitor booth designs authority without overwhelming visitors.
The Total Cost of Ownership: Evaluating Booth Designs Beyond Initial Spend
Beyond the Price Tag: Understanding True Trade Show Exhibit Costs
Total cost of ownership includes design, engineering, graphics, packing, freight, advance warehouse handling, direct-to-show shipping, installation, electrical service, dismantling, storage, repairs, and future graphic changes. A lower initial price may create higher program costs through specialized labor, oversized crates, replacement parts, or repeated rework.
Evaluate the exhibit over planned deployments. Ask how quickly it installs, how many people setup requires, how components are protected, and whether the structure adapts to different footprints.
The Hidden Fees: Drayage, Union Labor, and Shipping Realities
Drayage is commonly calculated by hundredweight, with charges affected by shipment weight, warehouse deadlines, special handling, and movement from the marshaling yard to the booth. Union rules can govern unloading, assembly, electrical work, and dismantling. Review target dates, overtime windows, rigging rules, electrical drops, and jurisdictional boundaries before shipment.
Logistics, freight, and on-site show services can account for 30% to 50% of total event operational spend beyond initial hardware fabrication, according to ExpoMarketing’s trade show booth design guidance. Crates should protect corners, frames, lightbox components, fabric graphics, and counters while supporting repeated loading and unloading.
Modular vs. Custom Timber vs. Commodity Pop-Ups: A Comparison of Lifecycles
Construction choice depends on event frequency, footprint changes, visual requirements, storage capacity, and installation support.
| Booth type | Lifecycle strengths | Operational considerations |
|---|---|---|
| Modular exhibit system | Adaptable components, lighter packing options, and repeatable configurations | Requires accurate part labeling, graphic management, and a documented assembly sequence |
| Custom timber build | Highly specific architecture, integrated millwork, and extensive finish control | Often creates heavier freight, larger crates, longer installation, and greater repair exposure |
| Commodity pop-up | Low entry cost, compact storage, and simple transport for limited requirements | Limited structural capacity, smaller graphic impact, and fewer options for demonstrations or storage |
Designing for Durability and Reusability: Reducing Long-Term Program Costs
Focus durability on frame connections, graphic channels, hinges, counter hardware, shelving, and crate interiors. Specify replaceable parts, protect finished surfaces, and document packing order. Modular exhibit systems may reduce ongoing multi-show shipping and drayage expenses by up to 40% compared with heavy static custom wood builds, according to Classic Exhibits.
The 10x20ft Turnkey Trade Show Booth Rental - Primal Backlit is designed for a 10x20 presentation with a large graphic wall, bold messaging panel, custom-branded reception counter, and 1 EV2 DW counter with ample storage. Turnkey service covers delivery, set-up, dismantling, and removal. Graphics, accessories, chairs, tables, computers, monitors, carpet, drayage/material handling, electrical hook-up, and daily cleaning require separate planning.
Operational Checklist: Pre-Fabrication Questions to Avoid On-Site Failures
Before fabrication, require written answers to these questions:
- Are the approved floor plan, booth number, ceiling height, and neighboring sightlines confirmed?
- Have graphic dimensions, SEG tolerances, color proofs, and hardware interfaces been reviewed together?
- Does the packing list identify every frame, connector, light, graphic, tool, and replacement part?
- Are crate dimensions, freight weight, delivery deadline, and material handling responsibilities documented?
- Has installation been tested, including electrical access and union labor requirements?
- Who owns final sign-off when the designer, fabricator, freight provider, and installation crew are separate?
- Are dismantling instructions and return-shipping labels prepared before show opening?
A pre-fabrication review should end with one approved scope, component inventory, and accountable decision path. This reduces misaligned hardware, missing graphics, incorrect electrical placement, and last-minute labor changes while recording what the display must deliver.
Building a Reliable Program: Consistency and Risk Management Across Your Calendar
The Multi-Show Challenge: Maintaining Brand Integrity and Operational Flow
A multi-show schedule exposes weaknesses through different freight networks, venue move-in rules, and local crews. Consistency requires approved graphic files, repeatable hardware, documented packing methods, and a schedule for production, shipping, storage, installation, and dismantling. Track each show’s target dates, advance warehouse deadline, direct-to-show cutoff, electrical requirements, labor window, and return-shipping plan.
Standardization vs. Customization: Finding the Right Balance for Your Program
Repeated frame sizes, counters, lighting components, graphic channels, and packing labels make training easier and reduce installation variation. Customization remains useful for different footprints, demonstrations, meetings, or messages. Define which elements stay fixed and which can change without creating a new process. Maintain a master specification for finishes, graphic dimensions, hardware, furniture, power, and storage, then create event-specific drawings from it.
Vendor Fragmentation: The Root Cause of On-Site Execution Failures
Failures arise when artwork, frames, graphics, freight, and installation are managed separately. Prevent this with one approved scope, current drawing set, component inventory, and person responsible for final verification. Responsibility should cover design approval, fabrication, freight release, labor coordination, installation sign-off, and return handling.
Logistics Coordination: Streamlining Shipping, Storage, and Setup
Freight planning should cover crate protection, shipment weight, delivery windows, storage capacity, and material handling. Photograph packed components and label cases according to installation order. Confirm the receiving address, booth number, delivery method, labor call, electrical drop, and dismantling appointment.
Your Execution Partner: How Integrated Management Reduces Risk and Maximizes ROI
An integrated partner connects creative decisions with production tolerances, freight requirements, show regulations, and on-site labor. This reduces coordination burden and provides a clearer response when conditions change. For a recurring calendar, assess the partner’s documentation, dependency management, asset protection, and issue reporting before opening day.
Frequently Asked Questions
How do I design a booth for an exhibition?
Designing a booth for an exhibition starts with show-floor conditions, not a polished render. Confirm the display fits its footprint, plan traffic flow and functional zones, verify freight and installation logistics, and keep the main message readable within the 3 to 5 seconds attendees spend scanning a facade.
What are trending booth design styles?
Trending exhibitor booth designs favor modular exhibit systems, backlit tension fabric lightboxes, and layouts built for repeatable setup across changing venues. Rather than chasing a single look, strong programs prioritize large format graphics for visibility, clear zoning for demonstrations and consultations, and hardware that packs, ships, and reinstalls reliably from show to show.
What are common booth design mistakes?
Common booth design mistakes include treating a render as the finished plan, placing counters across the entry path, and overlooking packing order, labeling, and installation sequence. Other frequent errors involve copying one layout across different footprints without adjusting for inline versus island configurations, or choosing a lower fabrication price that creates extra labor and freight costs later.
How can I make my booth more attractive?
Making a booth more attractive starts with a message readable at aisle distance within those first 3 to 5 seconds. Place the main identity and value statement on the back wall, use a large format lightbox or tall graphic surface for visibility, and keep an open, approachable path that invites attendees into the conversation zone.
How big is a 10x10 vendor booth?
A 10x10 vendor booth measures 10 feet wide by 10 feet deep and typically has one primary open side facing the aisle. This inline footprint limits storage, staff circulation, and product presentation, so successful layouts prioritize one conversation zone, one demonstration point, concealed storage, and a counter placed to one side of the entry.
How do I plan trade show booth logistics and installation?
Planning trade show booth logistics should begin with the first design conversation, covering packing order, advance warehouse deadlines, marshaling yard procedures, electrical drops, union jurisdiction, and dismantling steps. A documented installation sequence, clear packing plan, and labeled connection points reduce uncertainty and keep the crew on schedule before opening.
How should a 20x20 island exhibit be laid out?
A 20x20 island exhibit works best with a central architectural element, overhead identification, or tall graphic surface that commands attention without blocking entry. Keep corners purposeful by placing demonstrations and meeting points where they preserve circulation, and review rigging rules, ceiling height, fire regulations, and neighboring sightlines early in planning.
